Supermarket Shelving & Shop Shelving - Gondola End Bay

Shop Shelving & Supermarket Shelving

Supermarket Shelving & Shop Shelving - Gondola End Bay
Product CodePrice each
(excl. VAT)
NB.Gondolabay1 POA*

* Price on application. Please contact us for more details.

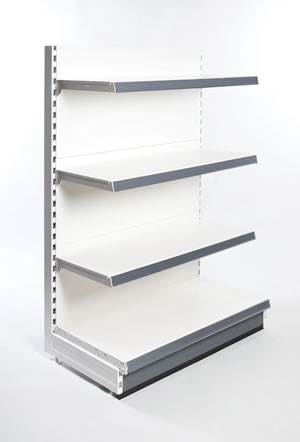

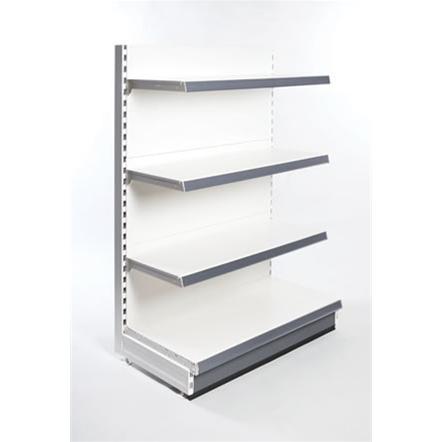

A gondola end bay neatly completes any double sided gondola run adding maximum selling space within the shop environment.

Comes in widths of 665mm, 800mm, 1000mm or 1250mm to neatly cover the end of a double sided gondola run or aisle. Multiple height options available from stock.

Download Our Supermarket & Shop Shelving Brochure (takes around 30 second to download) for additional information and assembly instructions: (It takes around 30 seconds to download):

Click Here For Supermarket & Shop Shelving Brochure


Ideal for seasonal displays Maximises in store promotions Creates impulse sales.


Please note Uprights 30, 60 & 80mm in depth are supplied 10mm longer than specified i.e. a 2200mm Upright is supplied at 2210mm in length. Remember to allow for foot adjustment when calculating ceiling heights. If using a Baseleg you need to deduct 100mm off the Upright height, i.e. 2100mm Upright including baseleg would leave 2000mm of back panel requirement. Please see below to the back panel configurations for all Upright heights.

You will need back panels on both sides of the bay to make it look tidy and complete.

Please note if using Back Panels on the rear side of the Gondola End Bay do not deduct 100mm when calculating the back panel configuration.

Instead of using a Plinth, there is the option to use a Base Drawer Unit that gives you added storage underneath the bay. The Base Drawer is available in two sizes; 1000x370 and 1000x470.

PVC Top Caps and Gondola Covers can be used to finish the bay.

Ticket Moulding and Plinth colours can be matched on to the bay and available in several colours; Jura White, Silver, Dark Grey, Blue, Green, Red and Black.

We offer 2 and 3 hook brackets that give you the opportunity to adjust the shelves to sit at different angles on the bay. 2 hook brackets in 200, 250, 300 and 370mm depths can be adjusted to a 20 or 35 degree angle. 470/2 Hook brackets can only be adjusted to 20 degrees. 3 Hook brackets can be adjusted to 10 and 20 degrees but you cannot use a U-channel with the 3 Hook brackets.

Perforated and Slatwall Back Panels can be used on the bay.

This bay is available in Jura and Silver.
